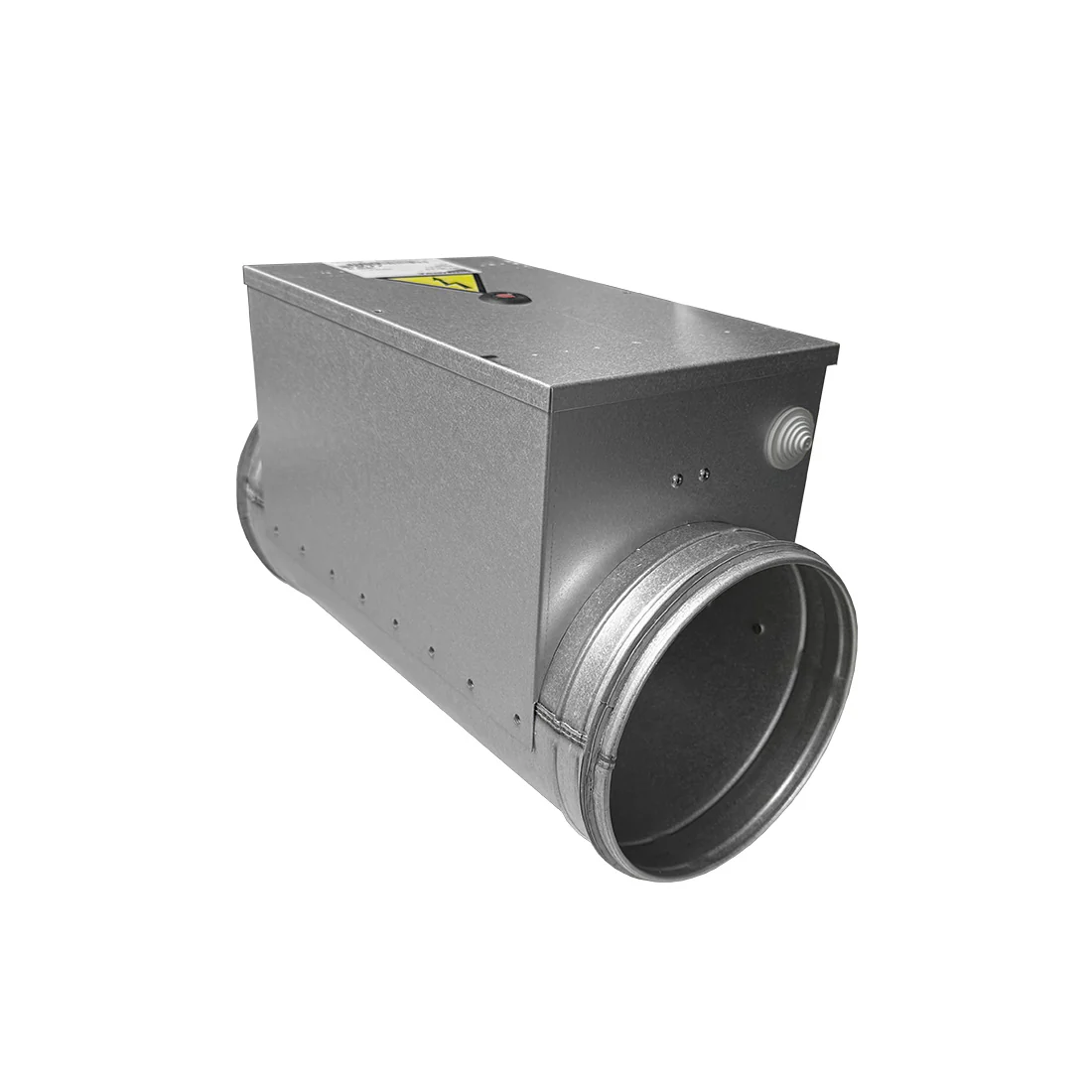

Vent Matika EKA Standard Duct Heater

The Vent Matika EKA range of electric duct heaters is designed for ventilation systems, providing:
Comfort heating
Pre-heating to protect ventilation units from frost

Note: This standard range does not include an integrated control.

Why Choose BPC Ventilation?
BPC Ventilation is the largest independent MVHR specialist, offering:
Lifetime technical support
High-quality ventilation systems

Key Features – Vent Matika EKA Standard Heater

No integrated control (external controller required)
Internal temperature regulator
Dual overheating protection
Pre-heater or post-heater functionality

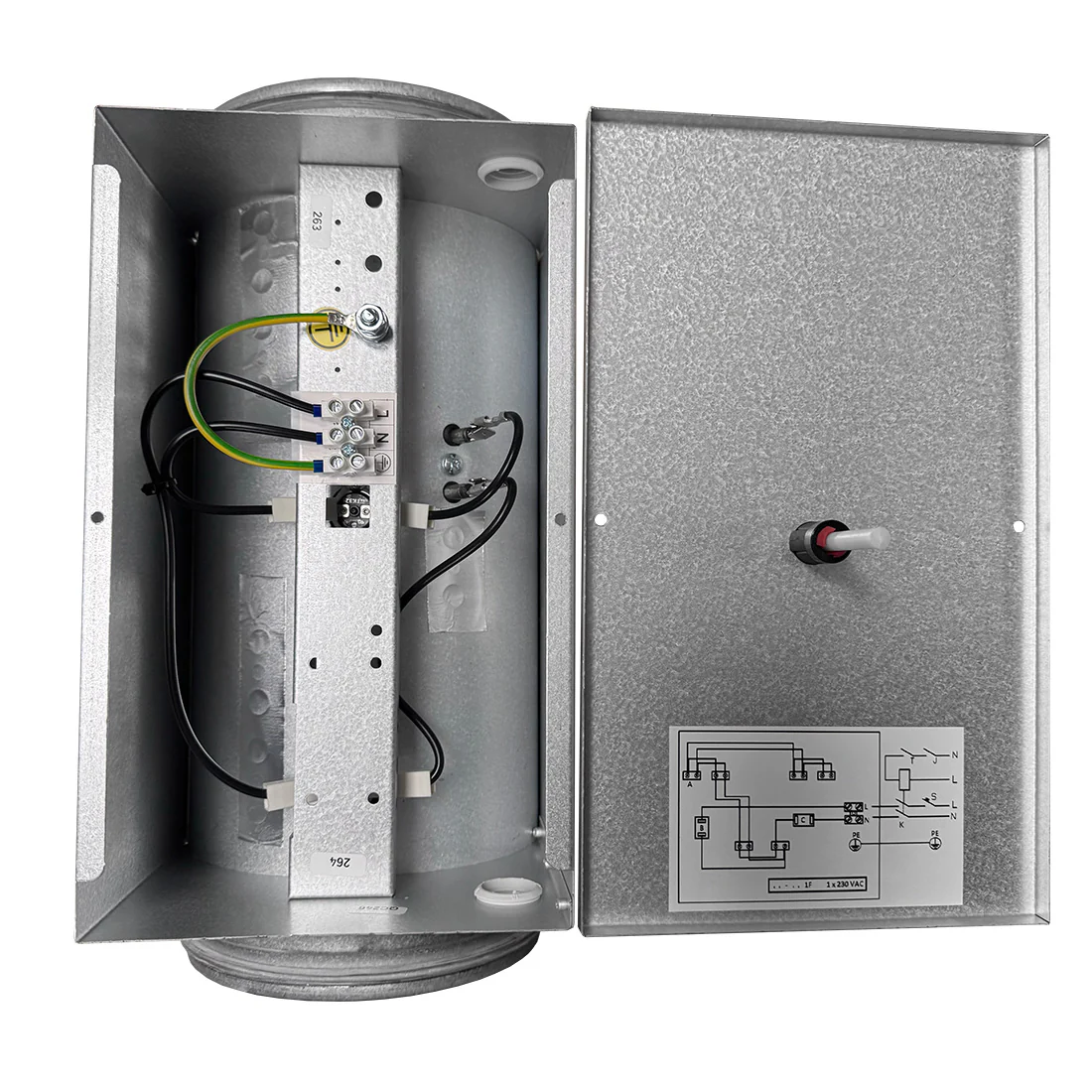

Easy-to-use screw terminals
Rubber-sealed ductwork connections
Flexible mounting: Horizontal or Vertical

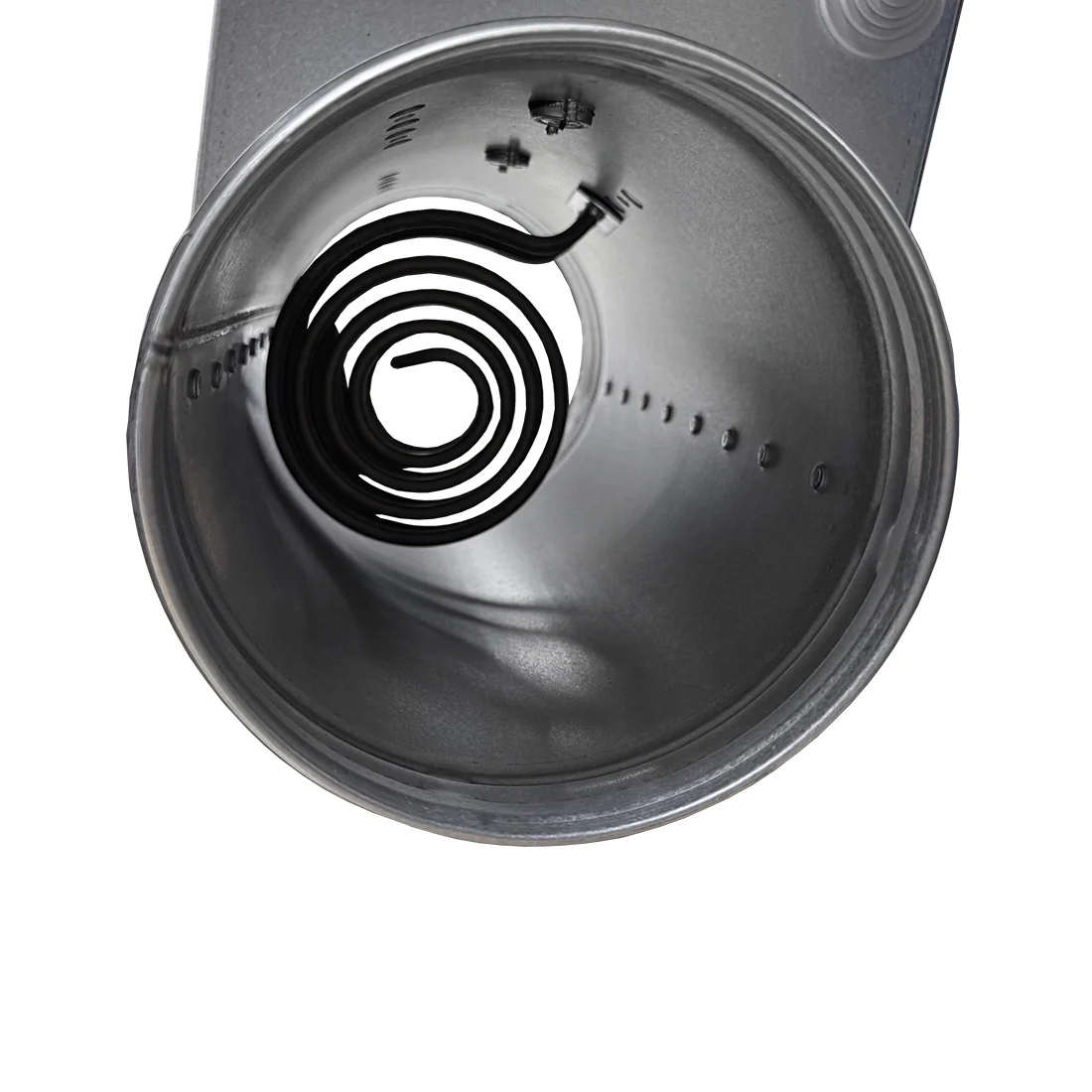

Stainless steel heating element
Aluzinc casing for durability
Certified: CE, RoHS & REACH

Control Options

This unit does not have an integrated control. We recommend connecting it to:
3rd Party Control Panel with Fused Supply (installation by an electrician recommended)

Overheating Protection

Built-in safety thermostats prevent overheating:
Automatic Reset: Turns off at 50°C, restarts when below 50°C
Manual Safety Reset: Turns off at 100°C – requires manual intervention

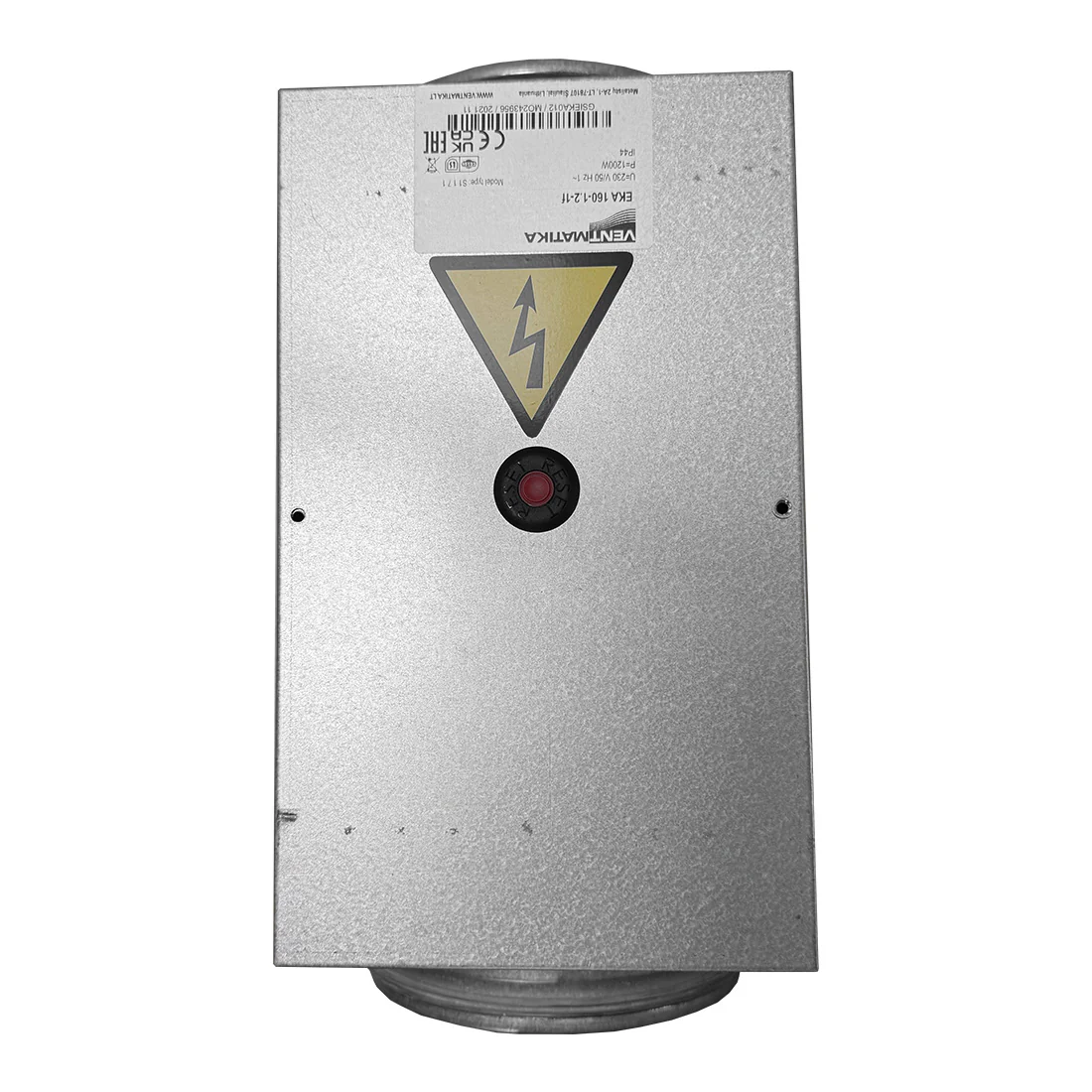

If overheating occurs, identify the cause, fix it, and press the RESET button on the heater’s cover.

Construction & Mounting

Material: Aluzinc-coated steel – high-temperature resistant
Installation:
Indoors only – away from moisture
Mounting:

• Horizontally with the electrical box facing up or sideways
• Vertically (only if airflow is upwards)

Max Output Temperature: 50°C

Dimensions

Available Models & Dimensions

These models are kept in stock, but other sizes and power outputs are available upon request. Contact our team for pricing & availability!

Model	Diameter	Power Output	Code
EKA-100-0.6	100mm	0.6 kW	EKA-100-0.6
EKA-125-1.2	125mm	1.2 kW	EKA-125-1.2
EKA-160-1.2	160mm	1.2 kW	EKA-160-1.2
EKA-160-2.4	160mm	2.4 kW	EKA-160-2.4
EKA-200-3.0	200mm	3.0 kW	EKA-200-3.0
EKA-250-3.0	250mm	3.0 kW	EKA-250-3.0

Need a custom size? Contact us for options!
